S5500-UV-VIS-Spectrometer

Share:

Product Introduction

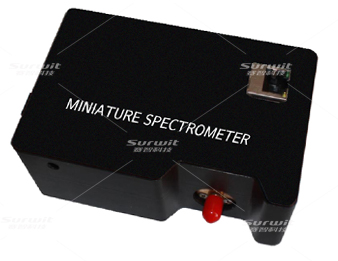

S5500-UV-VIS is a miniature spectrometer configured with crossed Czerny-Turner optical bench. Free Software and Software Development Kit(SDK) is available for spectrum analysis in various applications.


Features


Wavelength Range: 190nm ~ 850nm

UV enhanced

Software Development Kit(SDK) for Windows / Embedded system / Linux

RS232 Communication Protocol Support for Embedded System

High Spectral Resolution (FWHM) from 0.2 nm

High Sensitivity


Applications


Measurement of transmittance and reflectance

Absorbance/concentration measurement/chemical analysis

dsDNA/Protein/Biological Research

UV visible light source measurement



Structure:

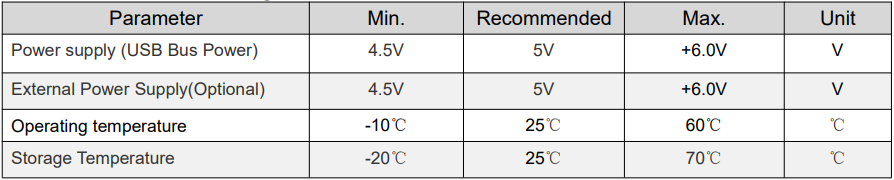

Absolute maximum ratings:

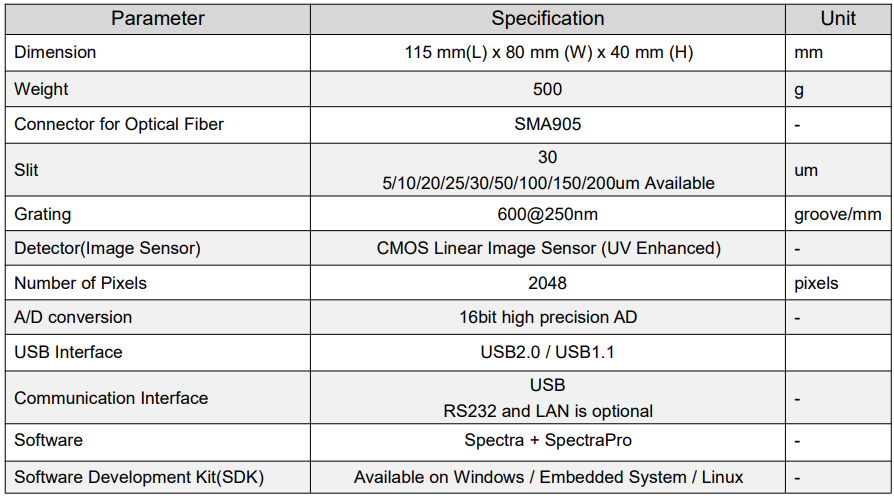

Electrical and Optical characteristics(Ta=25℃,unless otherwise noted)

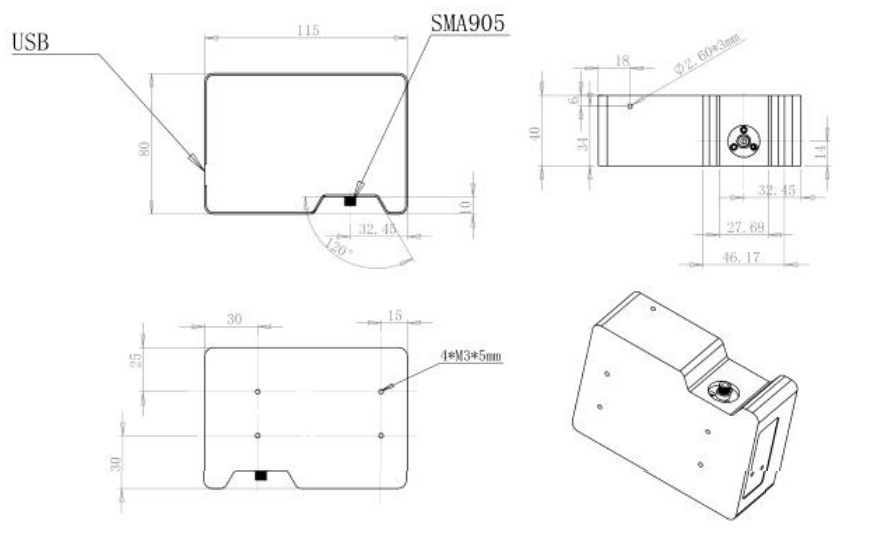

Dimensional outline(unit:mm,tolerance unless otherwise noted:±0.5)
