S5500-UV-Spectrometer

Share:

Product Introduction

S5000-UV is a miniature spectrometer configured with crossed Czerny-Turner optical bench. Free Software and Software Development Kit(SDK) is available for spectrum analysis in various applications.


Features


● Wavelength Range: 190nm ~ 400nm

● Free Software(SpectraPro V3.2 + Spectra V2.0)

● Software Development Kit(SDK) for Windows / Embedded system / Linux

● RS232 Communication Protocol Support for Embedded System

● High Spectral Resolution (FWHM) from 0.2 nm

● High Sensitivity




Applications


● Gas Concerntration Measurements

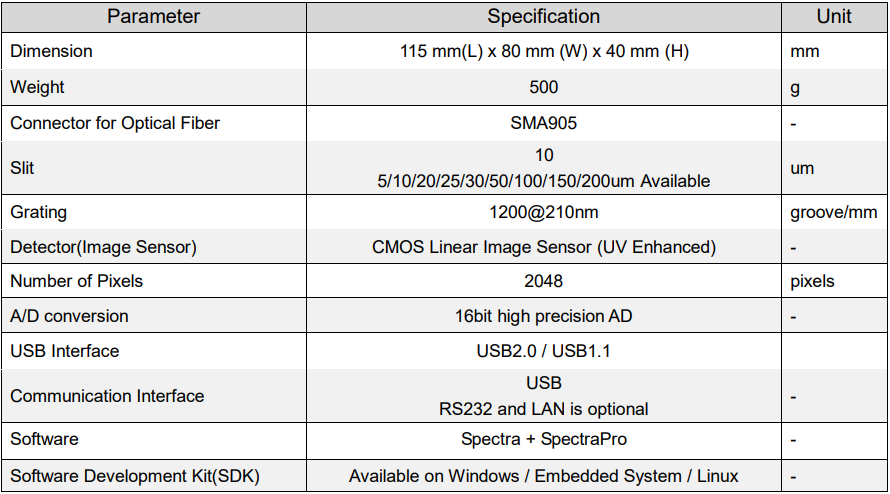

Structure:

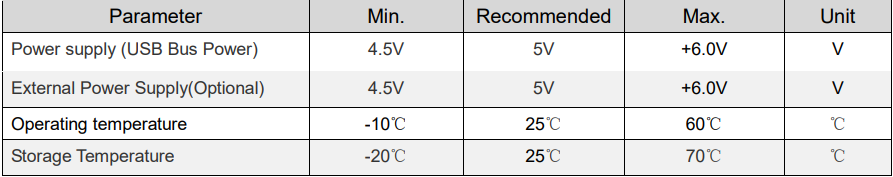

Absolute maximum ratings:

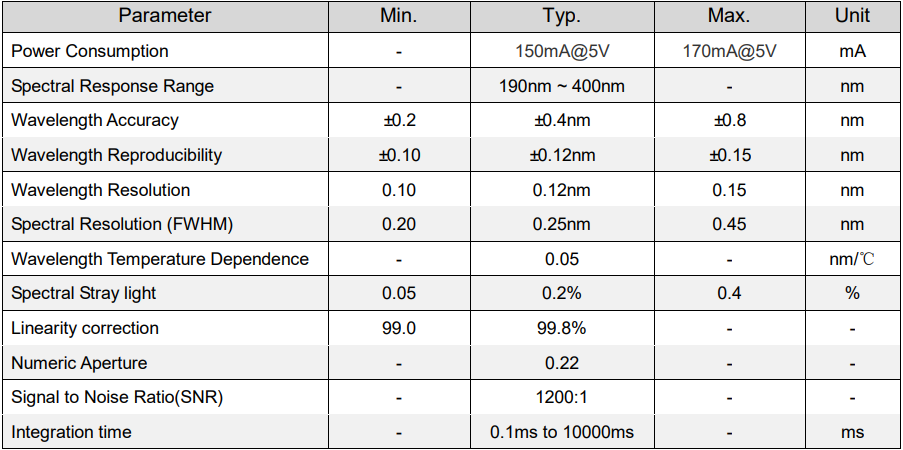

Electrical and Optical characteristics(Ta=25℃,unless otherwise noted)

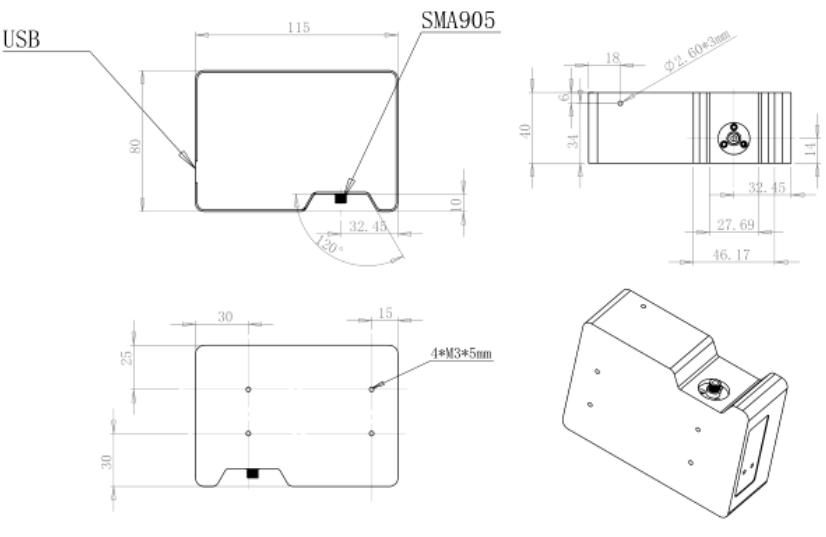

Dimensional outline(unit:mm,tolerance unless otherwise noted:±0.5)
