Quick Details

•  Ensure the data safety on different authority users

•  SST Fuctions ensure the procession reliability

•  Audit Trail

•  Effective Group data process

•  More user defined templates

•          Meet GMP, GLP, FDA, 21CFRⅡCertification




Specifications:

•  General

•  Number of Channels:  2

•  Input Voltage:   -2.5V ~ 2.5 V

•  Input Resistance:  > 10 MΩ

•  Sensitivity of Integration: 1 u V/s

• Minimum resolution: 1 u V

•  Dynamic Range:  10⁷

•  Linearity: ±0.1 %

•

• Peak Processing

•  Number of peaks:  > 1000

•  Width of peak:  0.01 s

•  Automatic Time Programming

•  Manual Integration enabled

•  Automatic identification of complex peaks and precise partition of overlapped peak

•  Automatic tracing and correcting base line

•  Automatically eliminate the affect of negative peak

•  Meet the GMP regulation






•

• Methods for Identifying Peak

•  Conservative time method

•  Components table method




Method for Quantitative Calculation

 1.   Normalized Method,

 2.   Normalized Method with Proportional Factor,

 3.   Internal Standard Method,

 4.   Grouping Method,

 5.   Multiple Internal Standard Method,

 6.   External Standard Method,

 7.   Logarithmic Method.

Advantage：

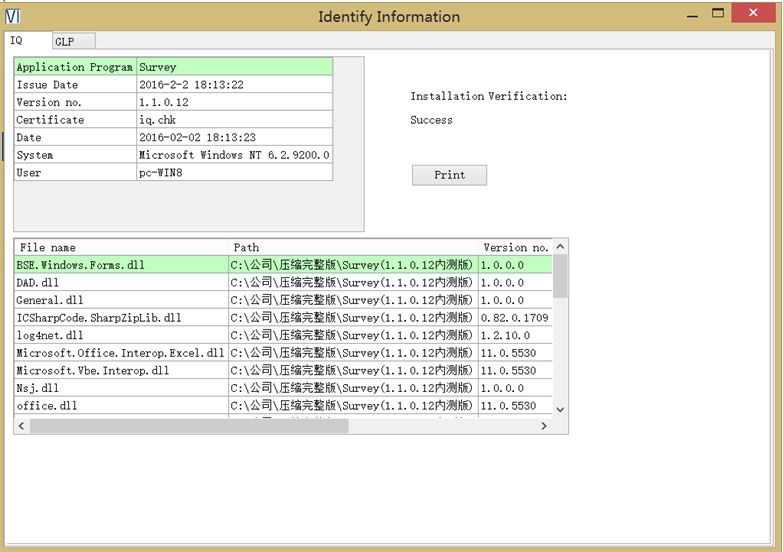

1.       Accord with FDA,GDP, GLP with the IQ

2.       Electronic signatures, column efficiency and other columns set up and detailed information can be recorded to support SST function

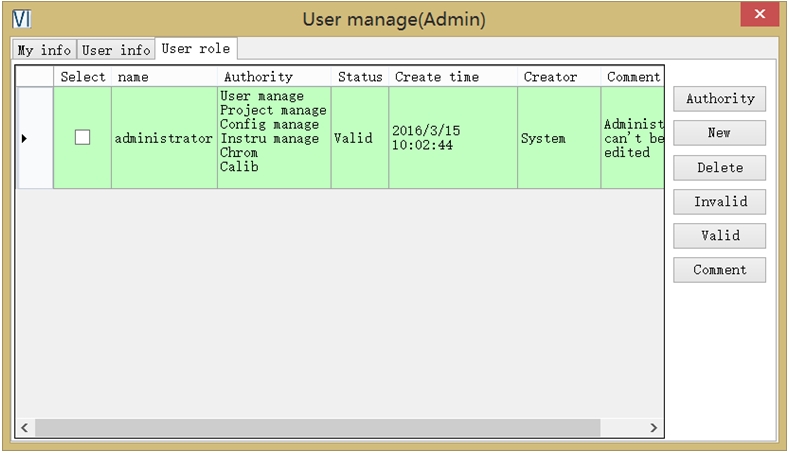

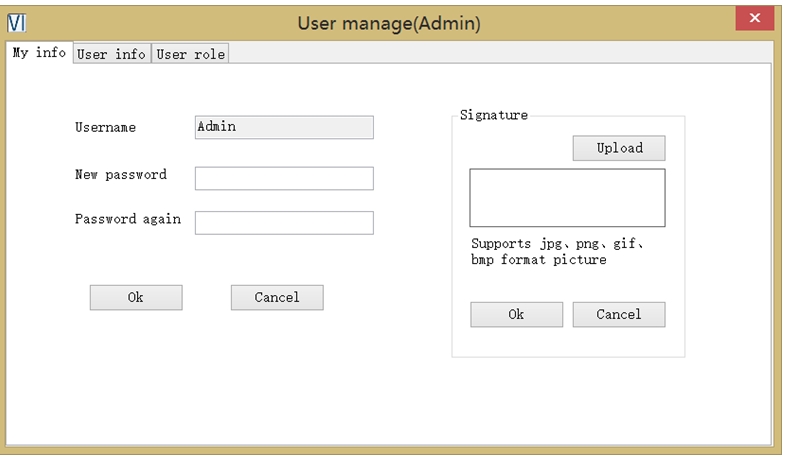

3.       You can set the type of user role, different roles have different access rights

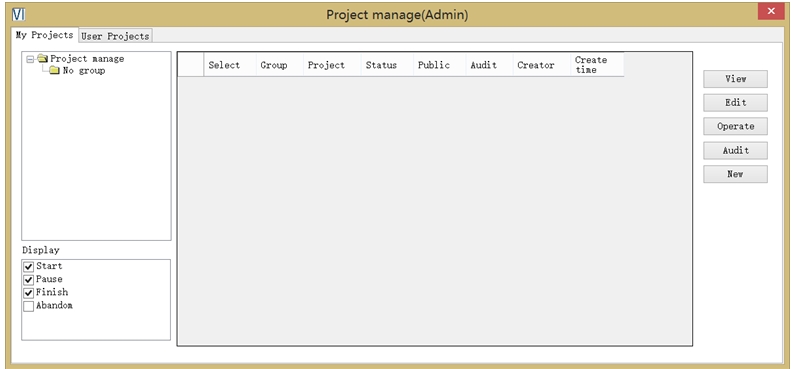

4.       Project management can back up and restore,

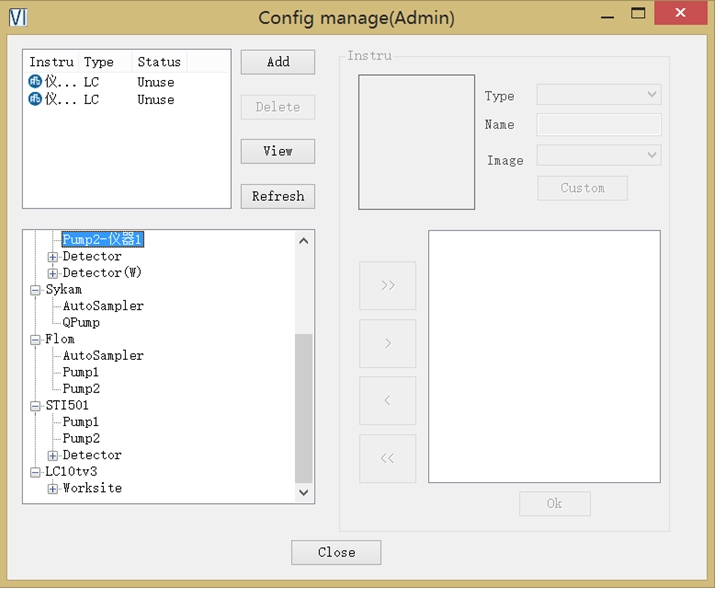

5.       Increase the anti-control equipment according to customer requirements, the software interface settings, control port and the instrument image can replaced

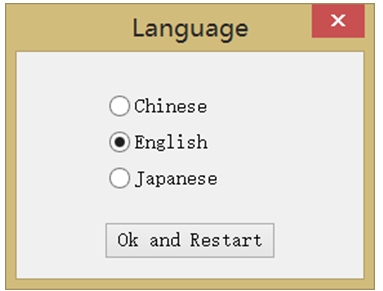

6.       Include three languages, Chinese, English and Japanese, and according to customer can load others

7.       win7 win8 32-bit 64-bit operating systems are supported, and can continue to upgrade
