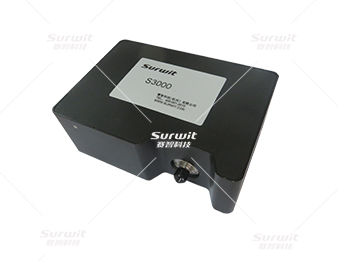

S3000-UVSpectrometer

Share:

Product Introduction

S3000-UV is a UV spectrometer made by Surwit Technology Inc. This spectrometer is designed for spectrum analysis in food, chemistry, biology and many other fields

S3000-UV



Power supply

5V DC provided by PC USB   port

Wavelength range

200nm ~ 950nm

Detector

TCD1304 UV-Enhanced CCD

Slit

 30um

Grating

      600line/mm@250nm

Wavelength resolution

Depending on grating   and slit, minimum to 0.2nm

S/N ratio

500:1

Scatter light

<0.1%

CCD Linearity correction

99.8%

Power consumption

95mA@5V

Communication   interface

USB2.0/RS232

A/D conversion

16Bit high precision AD

Fiber interface

 SMA905

Dimension

115 mm(L) x 80 mm (W) x 40 mm (H)

Weight

500 g

Minimum exposure time

0.01ms

Maximum exposure time

       60s

Wavelength repeat   error

< 0.2nm

Wavelength absolute   error

< 0.5nm

Operating temperature

      -40 ~ 85

Software

SpectraPro


SpectraAnalysis have multiple spectra line display, multiple spectra dispose, snapshot, buffer spectra, peak-searching/valley-searching, FWHM, coordinate convert, spectra recording functions. It mainly consist by Control Window , Spectra Window and Spectra List Window. Control window used to change settings of USB data collection; Spectra Window display the current spectra or file spectra collect from USB and open spectra recording file; Spectra setting window mainly control the display style of spactra line. Text label, mouse right button spectra line move, prompt bar and mouse prompt in spectra graphic make the operation more convenient, and get the spectra line information easily. It can contract with Microsoft ,export the spectra data asExcel and Word files. The program will save the spectra as *.ssp files, double click or move file into window can open the spectra graphic.









 Color Analysis



The function use the international authority full spectrum method (Without V ( lambda ) error correction ) to analysis spectral power distribution, chromaticity coordinates, correlated color temperature, color deviation , color tolerance, peak wavelength, color rendering index ( Ra) of LED, energy-saving light source and fluorescent powder . Wavelength range is 380nm ~ 780nm. The corresponding electrical equipment can measure voltage, current, power source, power factor. The analysis and control of products are all realized by computer software, software operation is simple, and with a strong light source test and data analysis and processing function, measurement data can be exported to Excel, txt and SSP ( spectral file ) for a variety of file formats, very convenient for calculation and analysis.









   Spectra Data

System configuration

A. Spectrometer S2000-UV or S2000-UV/NIR

B. Software SpectraPro V3.2

C. Adjustable halogen light source or Deuterium/Tungsten light source DH02

D. Reflectivity measurement accessories

E. Standard whiteboard

F: Y type optical fiber root (SMA905 interface)



C and E can be bought from us according to clients requirement.






Include:

Hardware and USB power line

Software SpectraPro V3.2 CD

User guide

Below lamp can be choosed with additional order


1. Adjustable tungsten light source H03



Feature

? Fiber Coupling

? VIA / NIR optical output

? High stability

? Compact

? long life



Typical spectral output



Technical Parameters

The spectral output range

330nm~2600nm

power

10W

Input Power

DC12V

Operating temperature

-10~35

Settling Time

1~2minutes

size

128mm(L) * 95mm(W) *53mm(H)

weight

420g(without optical fiber)

Optical interface

SMA905(FC interface can be choosed)

Recommendation fiber core diameter

400um

life

> 2000h



SpectraAnalysis have multiple spectra line display,multiple spectra dispose,snapshot,buffer spectra, peak-searching/valley-searching,F(xiàn)WHM, coordinate convert,spectra recording functions. It mainly consist by Control Window 、Spectra Window and Spectra List Window. Control window used to change settings of USB data collection;Spectra Window display the current spectra or file spectra collect from USB and open spectra recording file;Spectra setting window mainly control the display style of spactra line. Text label, mouse right button spectra line move, prompt bar and mouse prompt in spectra graphic make the operation more convenient, and get the spectra line information easily. It can contract with Microsoft ,export the spectra data asExcel and Word files. The program will save the spectra as *.ssp files,double click or move file into window can open the spectra graphic.


2.Deuterium Light Source D03

D03 deuterium light source is the fiber coupling UV light source, covering the wavelength range 190nm-> 400nm, using 30W deuterium lamp as a light source, output interface with SMA905 interface. It is the best choice for UV transmission and absorbance spectra measurement.



Feature

? Fiber Coupling

? UV / VIS optical output

? High stability

? Compact

? long life

Typical spectral output


Performance parameters

The spectral output range

190nm~400nm

power

30W

Optical interface

SMA905

Input Power

DC 24V 2A

Operating temperature

-10~35

size

240mm(L) * 110mm(W) * 150mm(H)

weight

1.5Kg

life

~2000H
