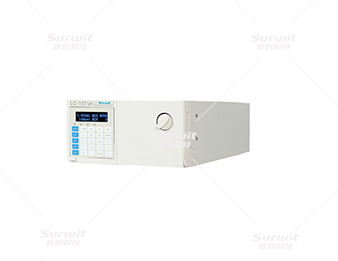

LC-10Tvp Liquid Pump was developed on the basis of STI501 Liquid Chromatography, adopted advanced technology and design of the USA. LC-10 Tvp Liquid Pump can be connected to any sort of Liquid detector, so widely applied in the field of HPLC, laboratory chemical reaction infusion and chromatography and etc.
Maximum and minimum pressure setting
Solvent compressibility compensation
Improve the precision of the pump by compensating solvent loss caused by different solvent pressure.
Leakage automatic alarm function
Infusion pump can be timely alarmed and automatic pause or continue infusion in accordance with the procedure set in advance.
Four kinds of pressure setting units
Pressure to zero adjustment function
The Zero adjustment function can help to relieve the zero drift
Key lock function
Prevent incorrect operation.
Special password
Prevent Error operation by special password
Sleep function
Close the display screen to increase the service life
Time program sets
Set a time program to change flow when separate difficult materials
Without gradient procedures, main pump can control second pump to complete the gradient procedure as a single.
VP function
VP record the equipment maintenance information, accord with GLP/GMP certification requirements
Features and Specification
Infusion way | Series dual-plunger pump | Pressure Accuracy | ± 2% |
Flow Rates | 0.001 ~9.999 ml/min | Flow Accuracy | ≤0.5% |
Pressure | 0 - 9999 psi | Flow Precision | ≤0.2% RSD |
Pulsation | <15psi from 600 to 1,600 psi, Flow 1mL/min | Operating Temperature | 4~40℃ |
Dimensions | 130H x 260W x 420 D, (mm) | Weight. | 11 kg |
