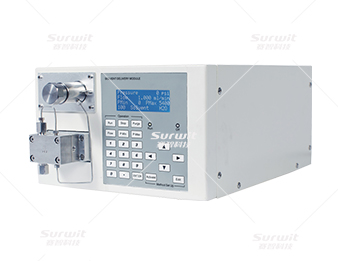

STI PT501 can be connected to any sort of liquid detector, stable flow, small pulse, high precision flow, corrosion resistance and high pressure resistance. STI PT 501 is widely used in HPLC, Lab chemical reaction infusion, constant current infusion charging and chromatography infusion.
STI PT501 Features
ASI valves for pump
Automatic pulse inhibits system
Power-on Self-checker
Automatic check
Automatic to check the pump head type, which easy to detect the inspection parameters settings.
Self-washing Function
Pump head can infusion without manual emptying pipeline.
Solvent compressibility compensation
Improve the precision of the pump by compensating solvent loss caused by different solvent pressure.
Pressure automatic alarm and protect function
Infusion pump can be timely alarmed in accordance with the high and low pressure to protect the pump in advance.
Internal gradient control software
Software can edit and storage of 60 gradient methods, which run and control by itself.
Easy maintenance
All components of pump head are easy to disassemble and wash.
Features and Specification
Infusion way | Series dual-plunger pump | Pressure Accuracy | ± 2% |
Flow Rates | 0.001 ~10.000 ml/min | Flow Accuracy | ≤±1 % (2μL/min) |
Pressure | 0 - 6000 psi | Flow Precision | 0.1% |
Pulsation | <15psi from 600 to 1,600 psi, Flow 1mL/min | Operating Temperature | 4~40°C |
Dimensions | 170H x 260W x 360D, (mm) | Weight. | (6.3 kg) |
